北美电动车充电毗连器常见产品结构

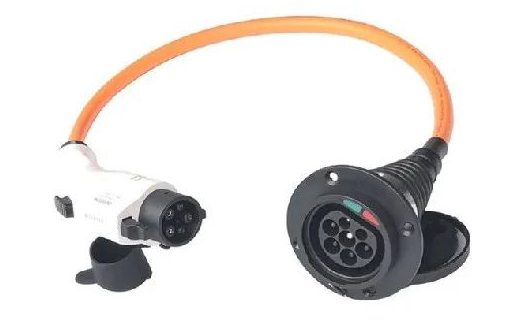

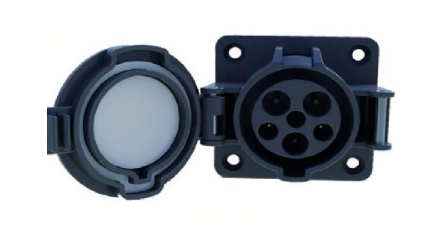

1. Vehicle Inlet 车辆充电插座/电动汽车充电口——车载端（SAE J1772  Sheet A-1）， 交流充电接口

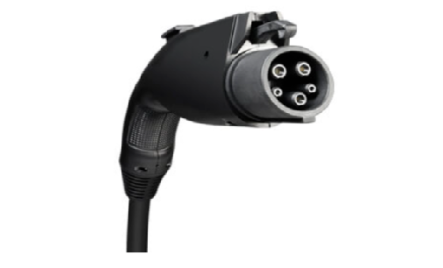

2. Vehicle Connector 充电枪头——充电桩端（SAE J1772 Sheet A-2） ，交流充电枪头

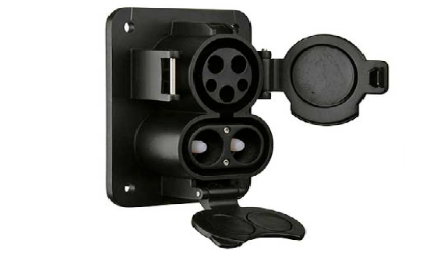

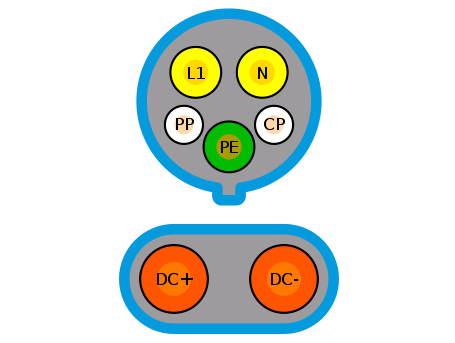

3. Vehicle Combo Inlet 汽车充电口——车载端（SAE J1772 Sheet C-1） ，交直流充电接口

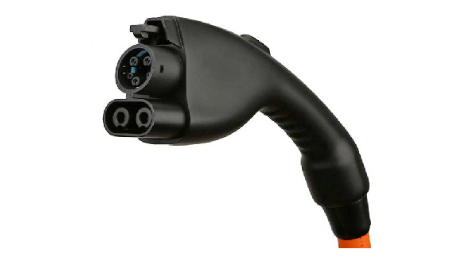

4. Vehicle DC Connector 直流充电枪——充电桩端（SAE J1772 Sheet C-2），直流充电枪头

5. EV CABLE ASSEMBLY 电动汽车充电线缆组件

北美电动车充电毗连器标准先容

电动车充电毗连器北美认证标准

CSA C22.2 NO. 282-17 / UL 2251 4th Edition — Standard for Plugs, Receptacles, and Couplers for Electric Vehicles（电动车辆用插头、插座和毗连器的标准）

电动车充电毗连器结构要求

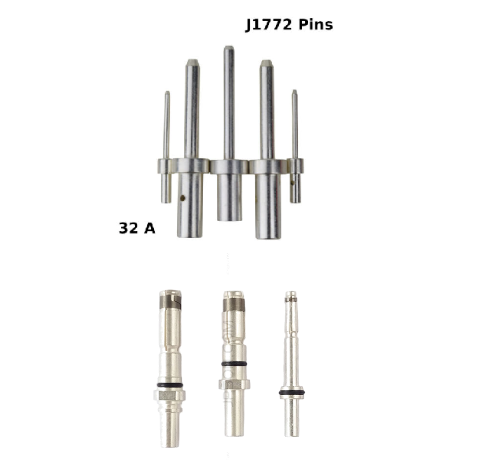

1. C22.2 No. 282 要求的端子接触顺序

7.2.1 The contact sequence during the connection process shall be: a) Grounding contact,

      b) Neutral contact N, if provided,

      c) Line contacts, AC or DC, and

      d) Control pilot contact, if provided.

The proximity contact or the connection switch contact, if any, shall make after the grounding contact and before or simultaneously with the control pilot contact. During disconnection, the order shall be reversed.

7.2.2 The neutral contact N shall make before or simultaneously with line contacts, and break after or simultaneously with line contacts.

2. C22.2 No. 282 对绝缘质料性能要求：

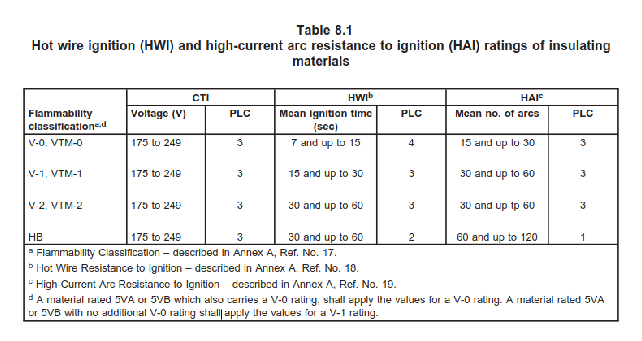

    Flammability（可燃性）

    Electrical properties（电性能）

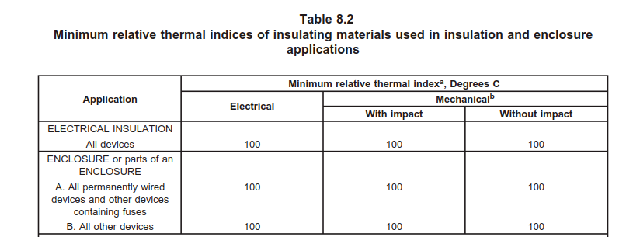

    Thermal properties（热性能）

3. C22.2 No. 282 对外壳机械性能要求：

10.2.1 An enclosure shall have adequate strength and rigidity for its intended use. It shall not permit any increase in shock or ?re hazard due to total or partial collapse with resulting reduction in spacings, loosening, or displacement of parts, or other serious defects. See the Impact Test, 34, the Crush Test, 35, and the Vehicle Drive Over Test, 36.

外壳应具有足够的强度和刚性，以知足其预期用途。它不应允许由于完全或部分坍塌而导致的距离减小、部件松动或移位或其他严重缺陷导致的攻击或?再危险的任何增添。见攻击试验，碾压试验，和车辆驾驶过载试验。

4. C22.2 No. 282 对外壳情形品级要求：

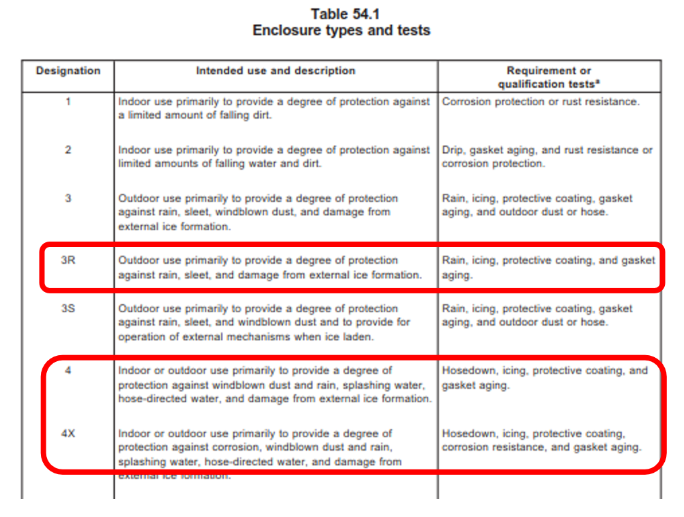

10.6.1 An enclosure shall be marked with one or more enclosure type designations indicating the environmental conditions for which it is intended in accordance with 56.12. The enclosure shall comply with the requirements applicable to the enclosure type number or numbers. See Enclosure Tests for Environmental Protection, 54.

凭证56.12的划定，外壳应标有一个或多个外壳类型标识，批注其所针对的情形条件。外壳应切合适用于外壳型号的要求。见情形；す乇帐讲馐。

5. C22.2 No. 282 对Current-Carrying Parts 载流体的要求：

11.1 Except as noted in 11.2 and 11.3, a current-carrying part shall be of silver, copper, or a copper alloy, or other material acceptable for the application. Plated iron or steel shall not be used for parts that are depended upon to carry current. Wire binding screws shall not be of iron or steel. Current carrying parts of contact shall comply with the requirements in Contacts, 18.

除11.2和11.3中尚有说明外，载流部件应接纳银、铜或铜合金或其他可接受的应用质料。不可使用镀铁或镀钢作为载流依赖的部件。捆扎钢丝的螺丝不可是铁或钢的。

太阳GG检测是专业第三方电动汽车充电毗连器认证检测机构，实验室具备CSA C22.2 NO. 282-17、UL 2251标准检测资质和检测能力，可提供电动汽车充电毗连器UL认证、TUV认证、CQC认证办理效劳。
